Meshcore Equipment
The following sections detail our builds and installations around the area. Additionally you will find approximate coverage maps of each node. Use these to help get connected if you are inside the coverage areas (red).

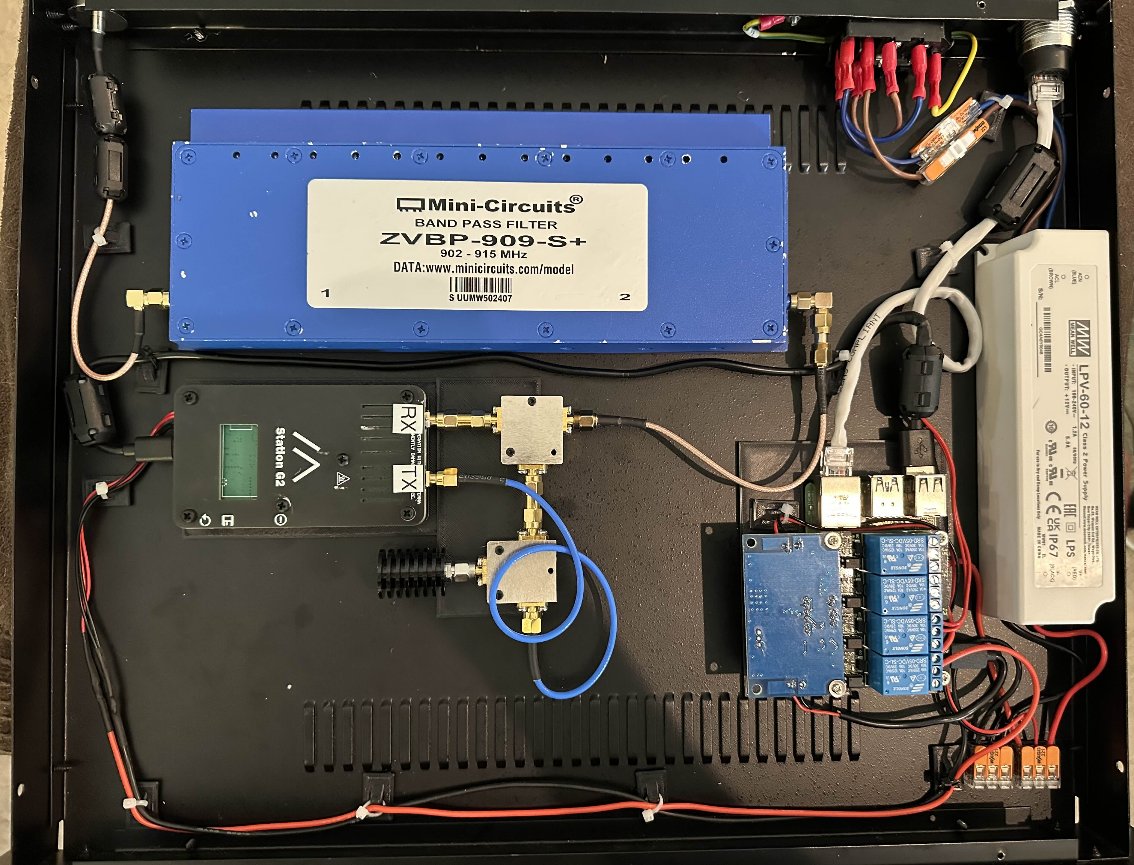

Cougar Mountain
| Node Name | Radio | Antenna | AGL | Battery | Solar | Freq | BW | SF | CR | GPS |
|---|---|---|---|---|---|---|---|---|---|---|
| WW7STR/PugetMesh Cougar | Station G3 | Unknown 6?dbi | — | UPS | No | 910.525 MHz | 62.5 kHz | 11 | 5 | — |

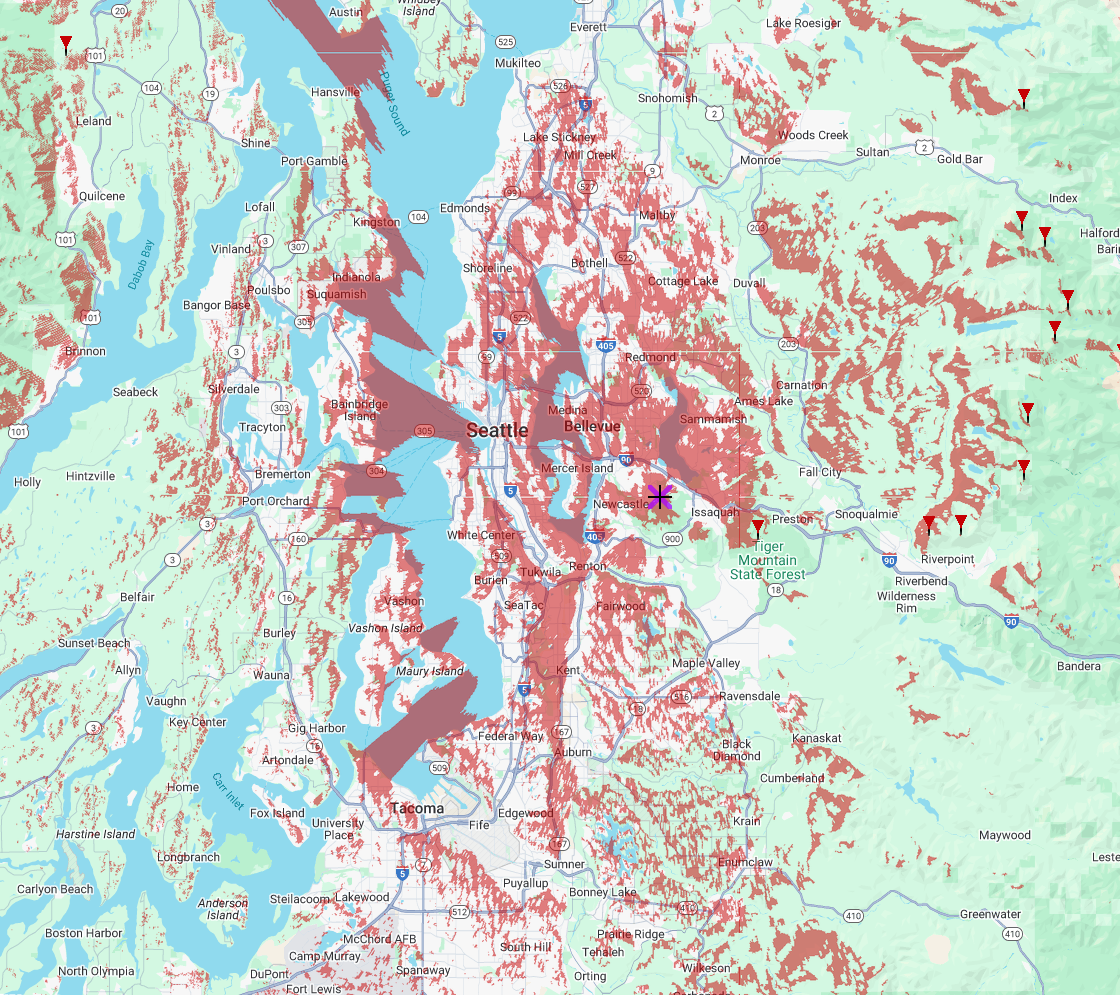

Click to enlarge and see the larger coverage map.

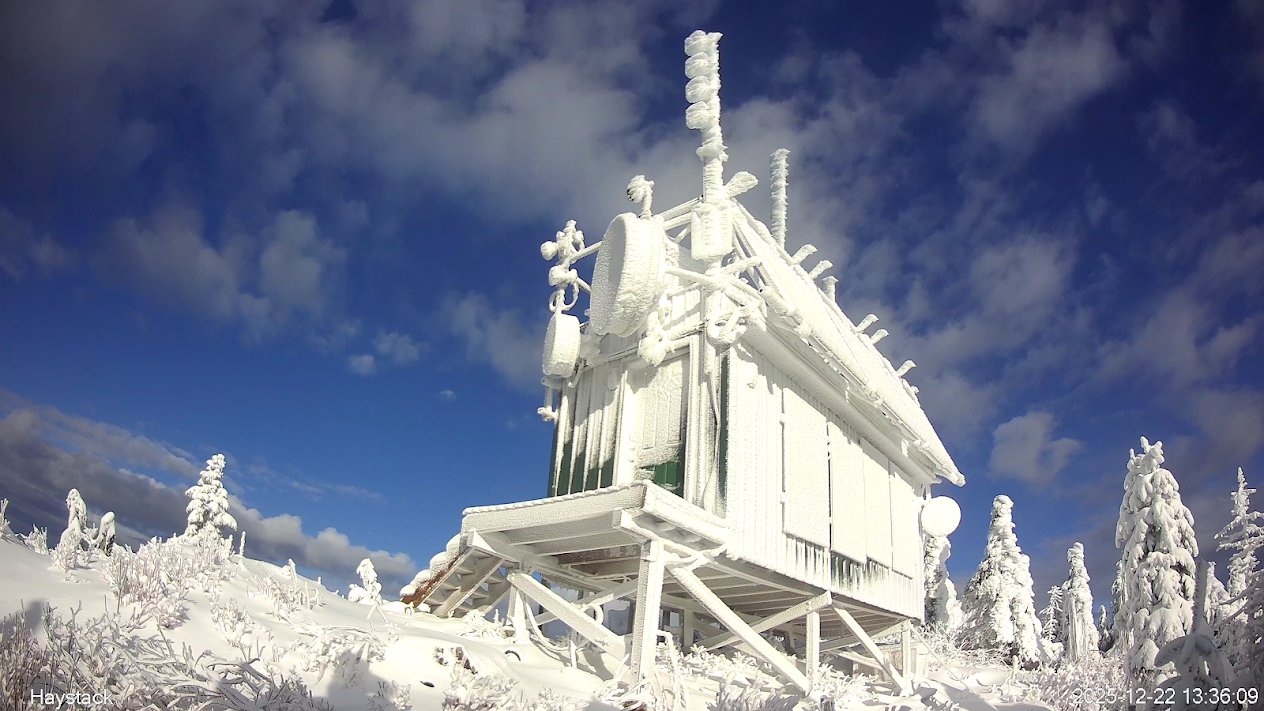

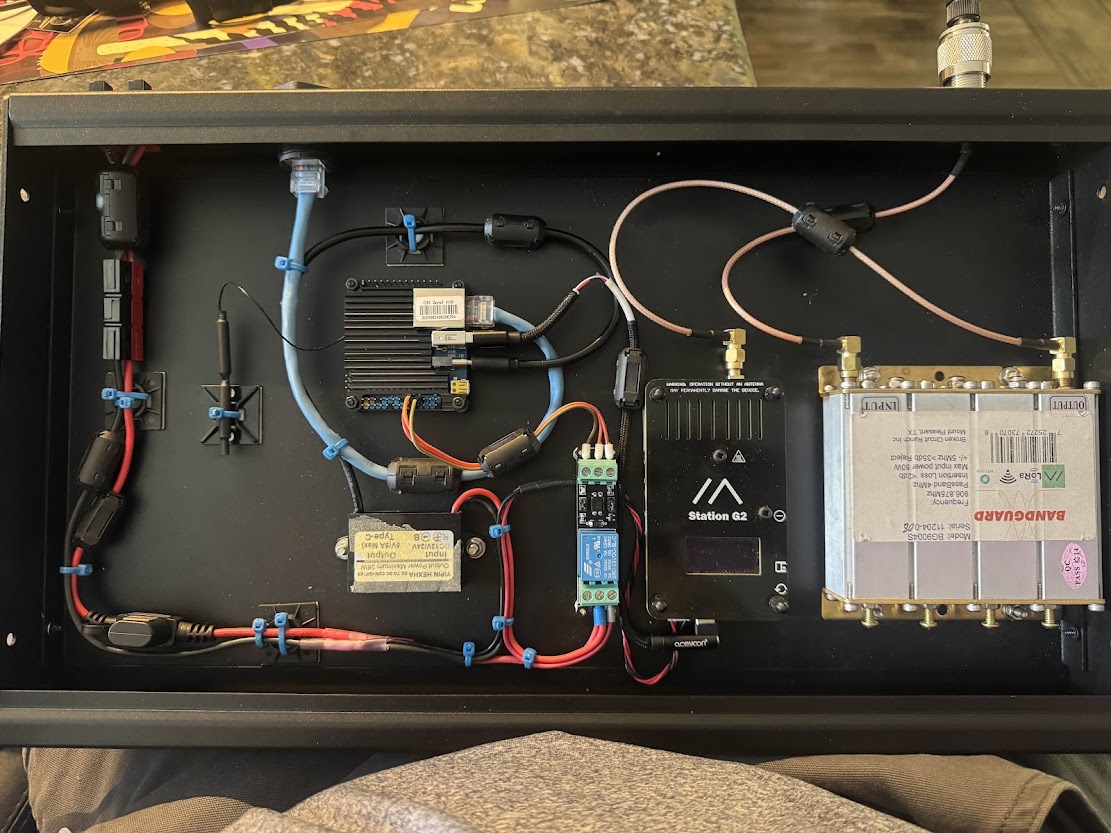

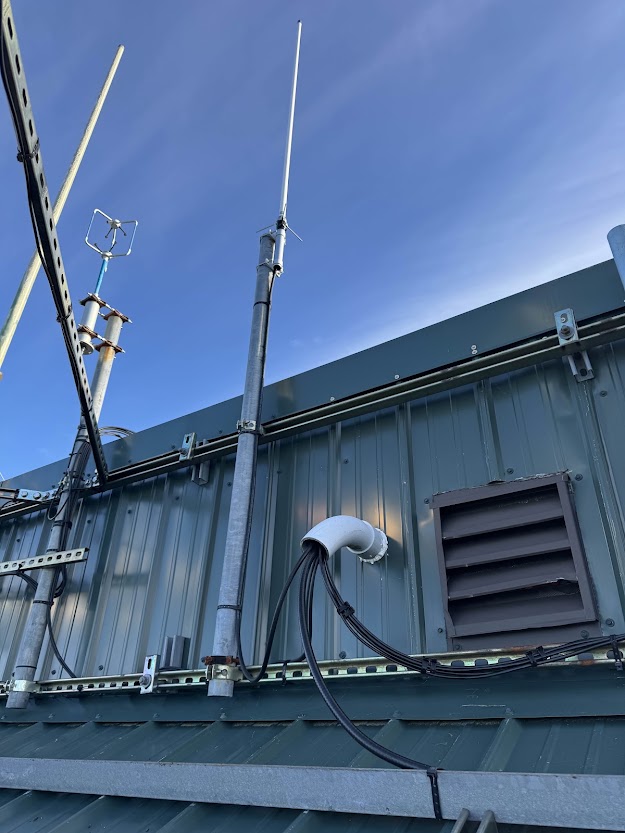

Haystack
| Node Name | Radio | Antenna | AGL | Battery | Solar | Freq | BW | SF | CR | GPS |
|---|---|---|---|---|---|---|---|---|---|---|
| — | Station G2 | — | — | — | — | 910.525 MHz | 62.5 kHz | 11 | 5 | — |
Coverage map coming soon.
Paine
| Node Name | Radio | Antenna | AGL | Battery | Solar | Freq | BW | SF | CR | GPS |
|---|---|---|---|---|---|---|---|---|---|---|
| — | — | — | — | — | — | 910.525 MHz | 62.5 kHz | 11 | 5 | — |
Node/site photo coming soon.
Coverage map coming soon.
Everett
| Node Name | Radio | Antenna | AGL | Battery | Solar | Freq | BW | SF | CR | GPS |
|---|---|---|---|---|---|---|---|---|---|---|
| — | — | — | — | — | — | 910.525 MHz | 62.5 kHz | 11 | 5 | — |
Node/site photo coming soon.
Coverage map coming soon.

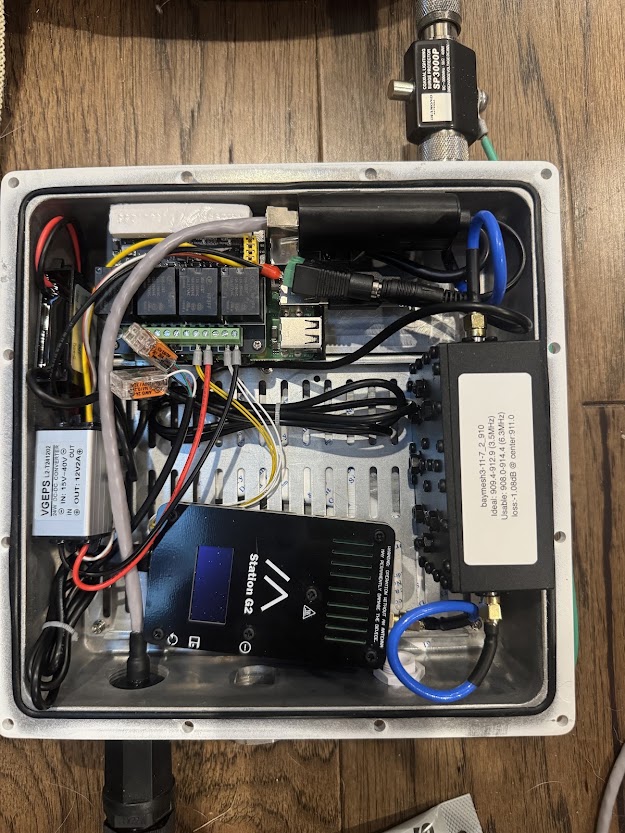

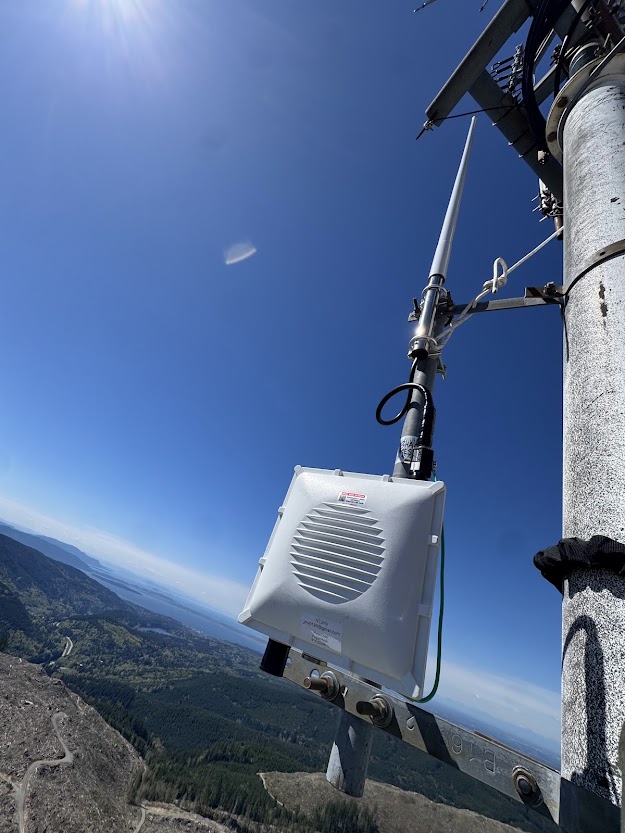

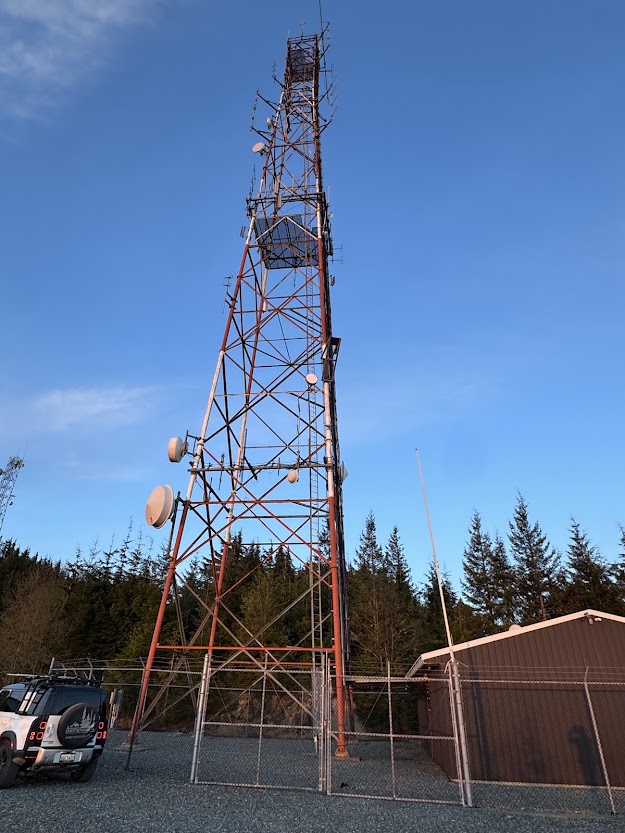

Lookout
| Node Name | Radio | Antenna | AGL | Battery | Solar | Freq | BW | SF | CR | GPS |
|---|---|---|---|---|---|---|---|---|---|---|
| — | Station G2 | — | — | — | — | 910.525 MHz | 62.5 kHz | 11 | 5 | — |
Coverage map coming soon.
West Tiger
| Node Name | Radio | Antenna | AGL | Battery | Solar | Freq | BW | SF | CR | GPS |
|---|---|---|---|---|---|---|---|---|---|---|
| — | — | — | — | — | — | 910.525 MHz | 62.5 kHz | 11 | 5 | — |
Node/site photo coming soon.
Coverage map coming soon.

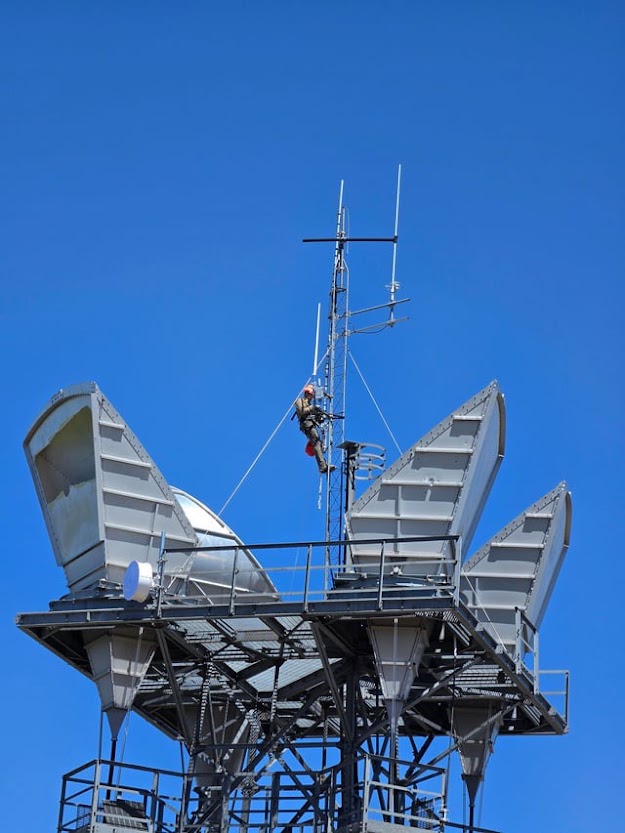

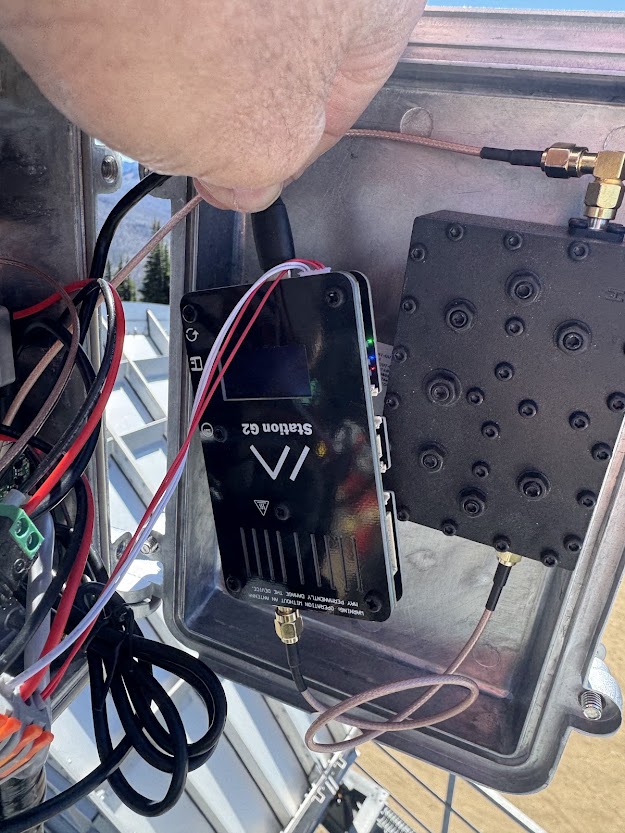

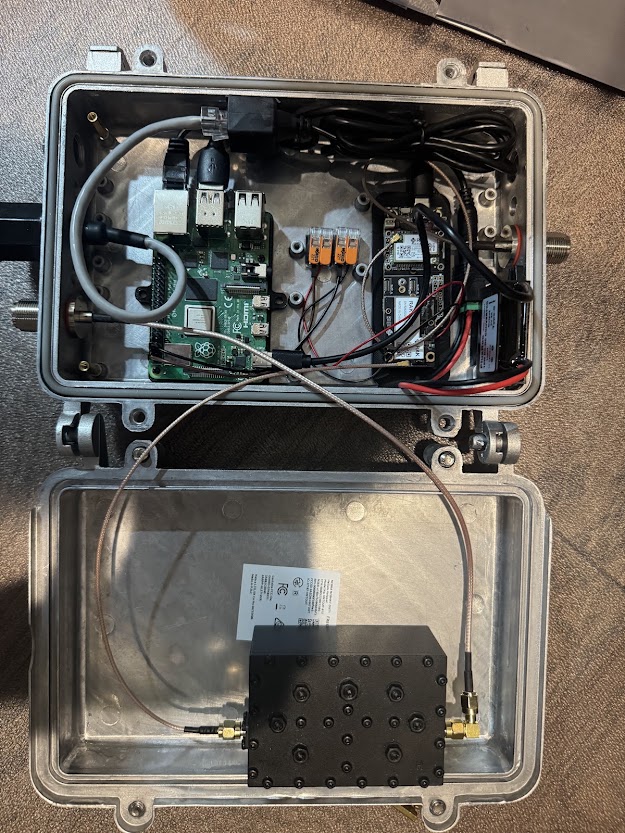

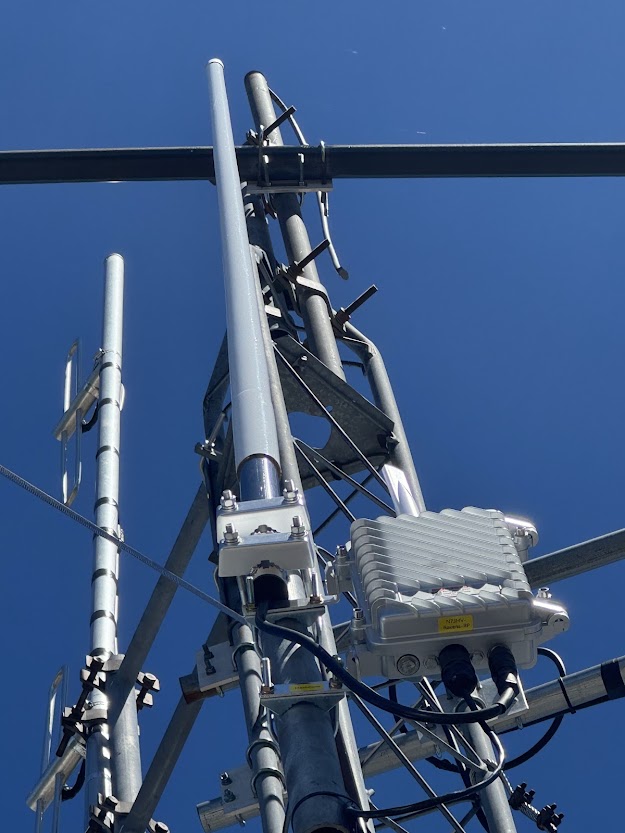

Ravens Roost
| Node Name | Radio | Antenna | AGL | Battery | Solar | Freq | BW | SF | CR | GPS |
|---|---|---|---|---|---|---|---|---|---|---|
| — | Station G2 | — | — | — | — | 910.525 MHz | 62.5 kHz | 11 | 5 | — |
Coverage map coming soon.

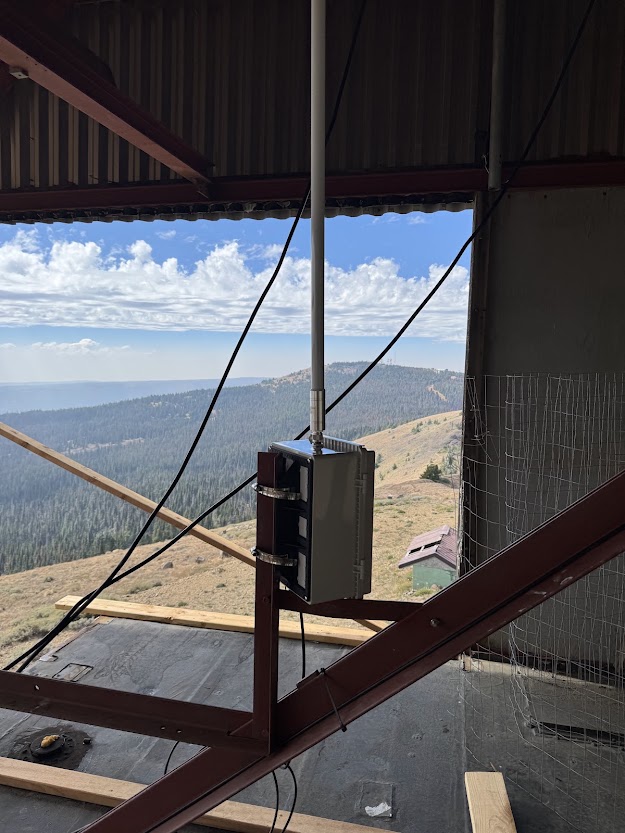

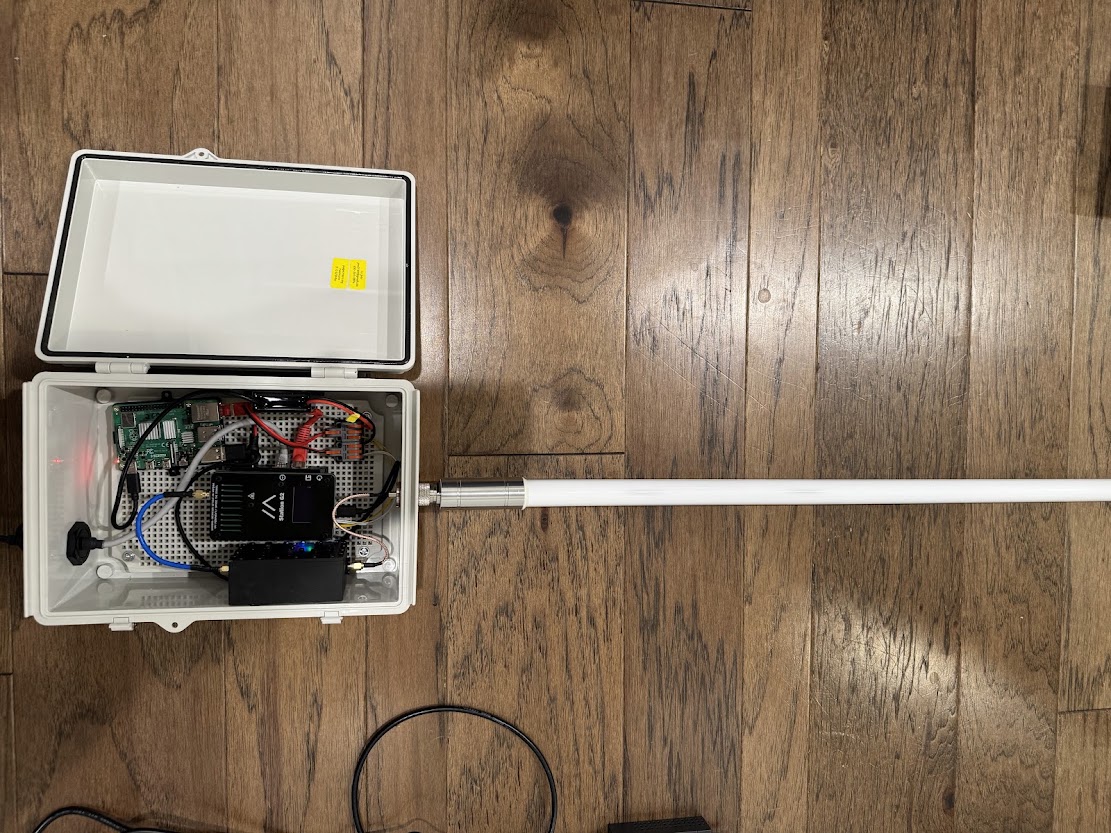

Mission Ridge
| Node Name | Radio | Antenna | AGL | Battery | Solar | Freq | BW | SF | CR | GPS |
|---|---|---|---|---|---|---|---|---|---|---|
| — | Station G2 | — | — | — | — | 910.525 MHz | 62.5 kHz | 11 | 5 | — |
Coverage map coming soon.
